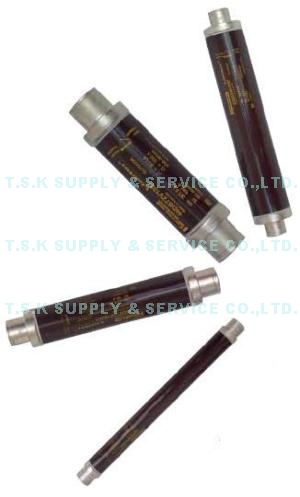

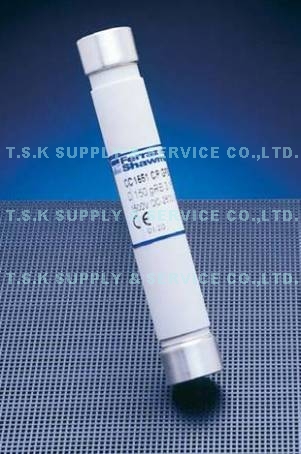

Medium Voltage Fuse

POWER SEMICONDUCTOR
POWER RESISTOR
ELECTRICAL EQUIPMENT
ELECTRIC WIRE & CABLE
LIQUID INSULATION
INDUSTRIAL ELECTRIC HEATING
THERMOCOUPLE



Bussmann Fuses FERRAZ SHAWMUT SIBA SIEMENS FUJI CONQUER

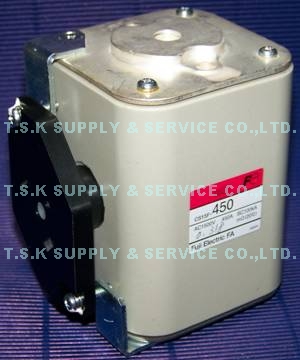

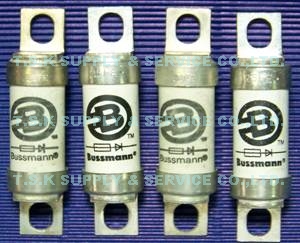

Semiconductor Fuses

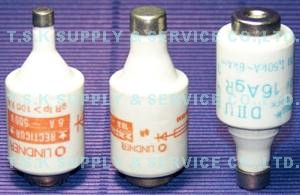

D  Fuse  System

SIZE  : D01 2  to  16 A 400 / 250V
D02 20  to  63 A 400 / 250V
NDZ 2  to  25 A 500V
DII 2  to  25 A 500V
DIII 35  to  63 A 500V
Bussmann Fuses

Ferrule  Style

FWA 150V 5  to  60 A
FWX 250V 1  to  30 A
FWH 500V 0.25  to  30 A
FWC 600V 6  to  32 A
FWP 660/700V 1  to  100 A
FWK 750V 5  to  60 A
FWJ 1000V 20  to  30 A
FWL/FWS 1250/1500V 2  to  30 A
Bussmann Fuses
British  Standard   BS88

240VAC / 150VDC   6  to  900 A
Part Numbers : LCT , LET , LMT , LMMT

690VAC / 450VDC 6  to  700 A
Part Numbers : CT, ET, FE, EET, FEE, FM, FMM
                           MT, MMT

Bussmann Fuses

Square  Body - DIN 43  653

10 - 400A

690V ( IEC / U.L. )
Size Amps -U/80 -/80 -TN/80
    Type T
Without Visual Indicator
Indicator Indicator for Micro
000 10 170M1308 170M1358 170M1408
16 170M1309 170M1359 170M1409
20 170M1310 170M1360 170M1410
25 170M1311 170M1361 170M1411
32 170M1312 170M1362 170M1412
40 170M1313 170M1363 170M1413
50 170M1314 170M1364 170M1414
63 170M1315 170M1365 170M1415
80 170M1316 170M1366 170M1416
100 170M1317 170M1367 170M1417
125 170M1318 170M1368 170M1418
160 170M1319 170M1369 170M1419
200 170M1320 170M1370 170M1420
250 170M1321 170M1371 170M1421
315 170M1322 170M1372 170M1422
00 25   170M2608 170M2658
32   170M2609 170M2659
40   170M2610 170M2660
50   170M2611 170M2661
63   170M2612 170M2662
80   170M2613 170M2663
100   170M2614 170M2664
125   170M2615 170M2665
160   170M2616 170M2666
200   170M2617 170M2667
250   170M2618 170M2668
315   170M2619 170M2669
350   170M2620 170M2670
400   170M2621 170M2671

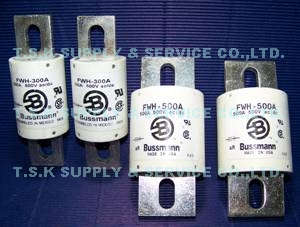

Bussmann Fuses
North   American

FWA 130V 1000  to  4000 A
FWA 150V 70  to  1000 A
FWX 250V 35  to  2500 A
FWH 500V 35  to  1600 A
KAC 600V 1  to  1000 A
KBC 600V 35  to  800 A
FWP 700V 5  to  1200 A
FWJ 1000V 35  to  2000 A

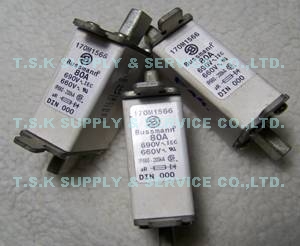

Bussmann Fuses

Square  Bady - DIN  43  620

10 - 400A

690V ( IEC / U.L. )

Size Amps DIN 000
Type T
Indicator
for Micro
000 10 170M1558
16 170M1559
20 170M1560
25 170M1561
32 170M1562
40 170M1563
50 170M1564
63 170M1565
80 170M1566
100 170M1567
125 170M1568
160 170M1569
200 170M1570
250 170M1571
315 170M1572
1* 40 170M3808
50 170M3809
63 170M3810
80 170M3811
100 170M3812
125 170M3813
160 170M3814
200 170M3815
250 170M3816
315 170M3817
350 170M3818
400 170M3819
2 400 170M5808
450 170M5809
500 170M5810
550 170M5811
630 170M5812
700 170M5813
3 500 170M6808
550 170M6809
630 170M6810
700 170M6811
800 170M6812
900 170M6813
1000 170M6814

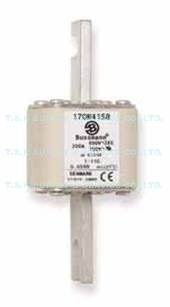

Bussmann Fuses

Square  Bady - DIN  43  620

40 - 2000A

690V /700V ( IEC / U.L. )
Size Amps   -TN/80   -TN/110
-/80 Type T -/110 Type T
Visual Indicator Visual Indicator
Indicator for Micro Indicator for Micro
1* 40 170M3008 170M3058 170M3158 170M3208
50 170M3009 170M3059 170M3159 170M3209
63 170M3010 170M3060 170M3160 170M3210
80 170M3011 170M3061 170M3161 170M3211
100 170M3012 170M3062 170M3162 170M3212
125 170M3013 170M3063 170M3163 170M3213
160 170M3014 170M3064 170M3164 170M3214
200 170M3015 170M3065 170M3165 170M3215
250 170M3016 170M3066 170M3166 170M3216
315 170M3017 170M3067 170M3167 170M3217
350 170M3018 170M3068 170M3168 170M3218
400 170M3019 170M3069 170M3169 170M3219
450 170M3020 170M3070 170M3170 170M3220
500 170M3021 170M3071 170M3171 170M3221
550 170M3022 170M3072 170M3172 170M3222
630 170M3023 170M3073 170M3173 170M3223
1 200 170M4008 170M4058 170M4158 170M4208
250 170M4009 170M4059 170M4159 170M4209
315 170M4010 170M4060 170M4160 170M4210
350 170M4011 170M4061 170M4161 170M4211
400 170M4012 170M4062 170M4162 170M4212
450 170M4013 170M4063 170M4163 170M4213
500 170M4014 170M4064 170M4164 170M4214
550 170M4015 170M4065 170M4165 170M4215
630 170M4016 170M4066 170M4166 170M4216
700 170M4017 170M4067 170M4167 170M4217
800 170M4018 170M4068 170M4168 170M4218
900 170M4019 170M4069 170M4169 170M4219
2 400 170M5008 170M5058 170M5158 170M5208
450 170M5009 170M5059 170M5159 170M5209
500 170M5010 170M5060 170M5160 170M5210
550 170M5011 170M5061 170M5161 170M5211
630 170M5012 170M5062 170M5162 170M5212
700 170M5013 170M5063 170M5163 170M5213
800 170M5014 170M5064 170M5164 170M5214
900 170M5015 170M5065 170M5165 170M5215
1000 170M5016 170M5066 170M5166 170M5216
1100 170M5017 170M5067 170M5167 170M5217
1250 170M5018 170M5068 170M5168 170M5218
3 500 170M6008 170M6058 170M6158 170M6208
550 170M6009 170M6059 170M6159 170M6209
630 170M6010 170M6060 170M6160 170M6210
700 170M6011 170M6061 170M6161 170M6211
800 170M6012 170M6062 170M6162 170M6212
900 170M6013 170M6063 170M6163 170M6213
1000 170M6014 170M6064 170M6164 170M6214
1100 170M6015 170M6065 170M6165 170M6215
1250 170M6016 170M6066 170M6166 170M6216
1400 170M6017 170M6067 170M6167 170M6217
1500 170M6018 170M6068 170M6168 170M6218
1600 170M6019 170M6069 170M6169 170M6219
1800 170M6020 170M6070 170M6170 170M6220
2000 170M6021 170M6071 170M6171 170M6221

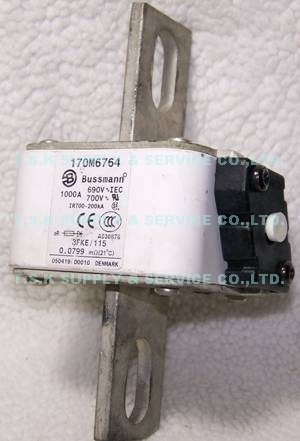

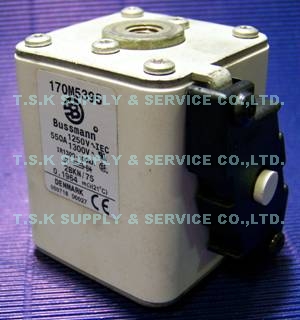

Bussmann Fuses

Square  Bady - Flush Eand Contact

40 - 2000A
690V /700V ( IEC / U.L. )

50 - 1400A
1250V1300V ( IEC / UL )

Size Amps   -BKN/-   -GKN/-
-B/- Type K -G/- Type K
Visual Indicator Visual Indicator
Indicator for Micro Indicator for Micro
1* 40 170M3408 170M3458 170M3508 170M3558
50 170M3409 170M3459 170M3509 170M3559
63 170M3410 170M3460 170M3510 170M3560
80 170M3411 170M3461 170M3511 170M3561
100 170M3412 170M3462 170M3512 170M3562
125 170M3413 170M3463 170M3513 170M3563
160 170M3414 170M3464 170M3514 170M3564
200 170M3415 170M3465 170M3515 170M3565
250 170M3416 170M3466 170M3516 170M3566
315 170M3417 170M3467 170M3517 170M3567
350 170M3418 170M3468 170M3518 170M3568
400 170M3419 170M3469 170M3519 170M3569
450 170M3420 170M3470 170M3520 170M3570
500 170M3421 170M3471 170M3521 170M3571
550 170M3422 170M3472 170M3522 170M3572
630 170M3423 170M3473 170M3523 170M3573
1 200 170M4408 170M4458 170M4508 170M4558
250 170M4409 170M4459 170M4509 170M4559
315 170M4410 170M4460 170M4510 170M4560
350 170M4411 170M4461 170M4511 170M4561
400 170M4412 170M4462 170M4512 170M4562
450 170M4413 170M4463 170M4513 170M4563
500 170M4414 170M4464 170M4514 170M4564
550 170M4415 170M4465 170M4515 170M4565
630 170M4416 170M4466 170M4516 170M4566
700 170M4417 170M4467 170M4517 170M4567
800 170M4418 170M4468 170M4518 170M4568
900 170M4419 170M4469 170M4519 170M4569
2 400 170M5408 170M5458 170M5508 170M5558
450 170M5409 170M5459 170M5509 170M5559
500 170M5410 170M5460 170M5510 170M5560
550 170M5411 170M5461 170M5511 170M5561
630 170M5412 170M5462 170M5512 170M5562
700 170M5413 170M5463 170M5513 170M5563
800 170M5414 170M5464 170M5514 170M5564
900 170M5415 170M5465 170M5515 170M5565
1000 170M5416 170M5466 170M5516 170M5566
1100 170M5417 170M5467 170M5517 170M5567
1250 170M5418 170M5468 170M5518 170M5568
3 500 170M6408 170M6458 170M6508 170M6558
550 170M6409 170M6459 170M6509 170M6559
630 170M6410 170M6460 170M6510 170M6560
700 170M6411 170M6461 170M6511 170M6561
800 170M6412 170M6462 170M6512 170M6562
900 170M6413 170M6463 170M6513 170M6563
1000 170M6414 170M6464 170M6514 170M6564
1100 170M6415 170M6465 170M6515 170M6565
1250 170M6416 170M6466 170M6516 170M6566
1400 170M6417 170M6467 170M6517 170M6567
1500 170M6418 170M6468 170M6518 170M6568
1600 170M6419 170M6469 170M6519 170M6569
1800 170M6420 170M6470 170M6520 170M6570
2000 170M6421 170M6471 170M6521 170M6571

Amps -BKN/75 BKN/80 BKN/90 -BKN/75 -GK/90
Type K Type K Type K Type K Type K
Indicator Indicator Indicator Indicator Indicator
for Micro for Micro for Micro for Micro for Micro
50 170M3388 170M3438   170M3488
63 170M3389 170M3439   170M3489
80 170M3390 170M3440   170M3490
100 170M3391 170M3441   170M3491
125 170M3392 170M3442   170M3492
160 170M3393 170M3443   170M3493
200 170M3394 170M3444   170M3494
250 170M3395 170M3445   170M3495
315 170M3396 170M3446   170M3496
350 170M3397 170M3447   170M3497
400   170M3448
160 170M4388 170M4438   170M4488
200 170M4389 170M4439   170M4489
250 170M4390 170M4440   170M4490
315 170M4391 170M4441   170M4491
350 170M4392 170M4442   170M4492
400 170M4393 170M4443   170M4493
450 170M4394 170M4444   170M4494
500 170M4395 170M4445   170M4495
550 170M4396 170M4446   170M4496
630 170M4397 170M4447   170M4497
250 170M5388 170M5438   170M5588
280 170M5389 170M5439   170M5589
315 170M5390 170M5440   170M5590
350 170M5391 170M5441   170M5591
400 170M5392 170M5442   170M5592
450 170M5393 170M5443   170M5593
500 170M5394 170M5444 170M5494 170M5594 170M5644
550 170M5395 170M5445 170M5495 170M5595 170M5645
630 170M5396 170M5446 170M5496 170M5596 170M5646
700 170M5397 170M5447 170M5497 170M5597 170M5647
800 170M5398 170M5448 170M5498 170M5598 170M5648
900     170M5499   170M5649
1000     170M5500   170M5650
315 170M6338 170M6538   170M6588
350 170M6339 170M6539   170M6589
400 170M6340 170M6540   170M6590
450 170M6341 170M6541   170M6591
500 170M6342 170M6542   170M6592
550 170M6343 170M6543   170M6593
630 170M6344 170M6544 170M6494 170M6594 170M6644
700 170M6345 170M6545 170M6495 170M6595 170M6645
800 170M6346 170M6546 170M6496 170M6596 170M6646
900 170M6347 170M6547 170M6497 170M6597 170M6647
1000 170M6348 170M6548 170M6498 170M6598 170M6648
1100 170M6349 170M6549 170M6499 170M6599 170M6649
1250     170M6500   170M6650
1400     170M6501   170M6651

Bussmann Fuses

Square  Bady - French Style

40 - 1500A
690V /700V ( IEC / U.L. )

Size Amps -E/ -EKN/
Type T Type K
Indicator Indicator
for Micro for Micro
1* 40 170M3308 170M3358
50 170M3309 170M3359
63 170M3310 170M3360
80 170M3311 170M3361
100 170M3312 170M3362
125 170M3313 170M3363
160 170M3314 170M3364
200 170M3315 170M3365
250 170M3316 170M3366
315 170M3317 170M3367
350 170M3318 170M3368
400 170M3319 170M3369
450 170M3320 170M3370
500 170M3321 170M3371
1 200 170M4308 170M4358
250 170M4309 170M4359
315 170M4310 170M4360
350 170M4311 170M4361
400 170M4312 170M4362
450 170M4313 170M4363
500 170M4314 170M4364
550 170M4315 170M4365
630 170M4316 170M4366
700 170M4317 170M4367
800 170M4318 170M4368
2 400 170M5308 170M5358
450 170M5309 170M5359
500 170M5310 170M5360
550 170M5311 170M5361
630 170M5312 170M5362
700 170M5313 170M5363
800 170M5314 170M5364
900 170M5315 170M5365
1000 170M5316 170M5366
3 500 170M6308 170M6358
550 170M6309 170M6359
630 170M6310 170M6360
700 170M6311 170M6361
800 170M6312 170M6362
900 170M6313 170M6363
1000 170M6314 170M6364
1100 170M6315 170M6365
1250 170M6316 170M6366
1400 170M6317 170M6367
1500 170M6318 170M6368
Bussmann Fuses

Square  Body  -  US Style

40-2000A
690V/700V ( IEC / U.L. )

50-1400A
1250V/1300V ( IEC / U.L. )

Size Amps   -FKE/-   -FKE115
-FU/- Type K -FU/115 Type K
Without Indicator Without Indicator
Indicator for Micro Indicator for Micro
1* 40 170M3608 170M3658 170M3708 170M3758
50 170M3609 170M3659 170M3709 170M3759
63 170M3610 170M3660 170M3710 170M3760
80 170M3611 170M3661 170M3711 170M3761
100 170M3612 170M3662 170M3712 170M3762
125 170M3613 170M3663 170M3713 170M3763
160 170M3614 170M3664 170M3714 170M3764
200 170M3615 170M3665 170M3715 170M3765
250 170M3616 170M3666 170M3716 170M3766
315 170M3617 170M3667 170M3717 170M3767
350 170M3618 170M3668 170M3718 170M3768
400 170M3619 170M3669 170M3719 170M3769
450 170M3620 170M3670 170M3720 170M3770
500 170M3621 170M3671 170M3721 170M3771
550 170M3622 170M3672 170M3722 170M3772
630 170M3623 170M3673 170M3723 170M3773
1 200 170M4608 170M4658 170M4708 170M4758
250 170M4609 170M4659 170M4709 170M4759
315 170M4610 170M4660 170M4710 170M4760
350 170M4611 170M4661 170M4711 170M4761
400 170M4612 170M4662 170M4712 170M4762
450 170M4613 170M4663 170M4713 170M4763
500 170M4614 170M4664 170M4714 170M4764
550 170M4615 170M4665 170M4715 170M4765
630 170M4616 170M4666 170M4716 170M4766
700 170M4617 170M4667 170M4717 170M4767
800 170M4618 170M4668 170M4718 170M4768
900 170M4619 170M4669 170M4719 170M4769
2 400 170M5608 170M5658 170M5708 170M5758
450 170M5609 170M5659 170M5709 170M5759
500 170M5610 170M5660 170M5710 170M5760
550 170M5611 170M5661 170M5711 170M5761
630 170M5612 170M5662 170M5712 170M5762
700 170M5613 170M5663 170M5713 170M5763
800 170M5614 170M5664 170M5714 170M5764
900 170M5615 170M5665 170M5715 170M5765
1000 170M5616 170M5666 170M5716 170M5766
1100 170M5617 170M5667 170M5717 170M5767
1250 170M5618 170M5668 170M5718 170M5768
3 500 170M6608 170M6658 170M6708 170M6758
550 170M6609 170M6659 170M6709 170M6759
630 170M6610 170M6660 170M6710 170M6760
700 170M6611 170M6661 170M6711 170M6761
800 170M6612 170M6662 170M6712 170M6762
900 170M6613 170M6663 170M6713 170M6763
1000 170M6614 170M6664 170M6714 170M6764
1100 170M6615 170M6665 170M6715 170M6765
1250 170M6616 170M6666 170M6716 170M6766
1400 170M6617 170M6667 170M6717 170M6767
1500 170M6618 170M6668 170M6718 170M6768
1600 170M6619 170M6669 170M6719 170M6769
1800 170M6620 170M6670 170M6720 170M6770
2000 170M6621 170M6671 170M6721 170M6771

Size Amps       -FKE115
Without Indicator -FU/115 Type K
Indicator for Micro Visual Indicator
    Indicator for Micro
1* 50     170M3688 170M3738
63     170M3689 170M3739
80     170M3690 170M3740
100     170M3691 170M3741
125     170M3692 170M3742
160     170M3693 170M3743
200     170M3694 170M3744
250     170M3695 170M3745
315     170M3696 170M3746
350     170M3697 170M3747
1 160     170M4688 170M4738
200     170M4689 170M4739
250     170M4690 170M4740
315     170M4691 170M4741
350     170M4692 170M4742
400     170M4693 170M4743
450     170M4694 170M4744
500     170M4695 170M4745
550     170M4696 170M4746
630     170M4697 170M4747
2 250     170M5688 170M5738
280     170M5689 170M5739
315     170M5690 170M5740
350     170M5691 170M5741
400     170M5692 170M5742
450     170M5693 170M5743
500     170M5694 170M5744
550     170M5695 170M5745
630     170M5696 170M5746
700     170M5697 170M5747
800     170M5698 170M5748
900     170M5699 170M5749
1000     170M5700 170M5750
3 315     170M6688 170M6738
350     170M6689 170M6739
400     170M6690 170M6740
450     170M6691 170M6741
500     170M6692 170M6742
550     170M6693 170M6743
630     170M6694 170M6744
700     170M6695 170M6745
800     170M6696 170M6746
900     170M6697 170M6747
1000     170M6698 170M6748
1100     170M6699 170M6749
1250     170M6700 170M6750
1400     170M6701 170M6751

Ferraz Shawmut

Protistor® Square-body Fuse

IEC 660VAC/700VAC
Size Amp Ref. Number
D08L 000 16 X330277
20 J330173
25 K330174
32 L330175
40 M330176
50 N330177
63 P330178
80 T330182
100 V330183
125 W330184
160 X330185
200 Y330186
250 Z330187
315 A330188
350 B330189
400 F330193

Ferraz  Shawmut

GERMAN STANDARD AS PER DIN 43653/00C-DIN80 & 110

IEC 660VAC / 700VAC
Size Amp Ref. Number
D08L 00

 16 S330273
20 S330227
25 T330228
32 V330229
40 W330230
50 X330231
63 Y330232
80 Z330233
100 A330234
125 B330235
160 C330236
200 H330241

Ferraz  Shawmut

Protistor® Square-body Fuse

IEC 660VAC / 700VAC

Size Amp Ref. Number
000 16 P320035
20 R320037
25 T320039
32 Y320043
40 C320047
50 G320051
63 L320055
80 Q320059
100 V320063
125 X320065
160 B320069
200 D320071
250 H320075
315 M320079

Ferraz  Shawmut

Protistor® Square-body Fuse

IEC 660VAC / 700VAC
Size Amp Ref. Number
  20 A320137
  25 C320139
  32 G320143
  40 L320147
  50 Q320151
  63 V320155
00 80 Z320159
  100 D320163
  125 F320165
  160 K320169
  200 M320171
  250 R320175
  315 W320179
Ferraz  Shawmut

American and European Square - body Fuses

IEC 660VAC / 700VAC

American Standaed PCS 1000 to 1300VAC Blades

Size Amp K L LL
    Ref. Number Ref. Number Ref. Number
  50 E301925 A301921
  63 B300128 M300138
  80 C300129 N300139
  100 D300130 P300140
  125 E300131 Q300141
  160 F300132 R300142
  200 G300133 S300143
30 250 H300134 T300144
  315 J300135 V300145
  350 K300136 W300146
  400 L300137 X300147
  450 T301064 K300527
  500 V301065 L300528
  550 W301066 M300529
  630   P302003
  160 F300385 D301924 C301923
  200 S300028 V300697 J300158
  250 T300029 W300698 K300159
  315 V300030 X300699 L300160
  350 R300050 Y300700 M300161
  400 W300031 Z300701 N300162
31 450 X300032 A300702 P300163
  500 Y300033 B300703 Q300164
  550 XZ300034 C300704 R300165
  630 A300035 D300705 S300166
  700 B300036 E300706 T300167
  800 A301070 F300707 J300526
  400 Z300195 J300204
  450 A300196 K300205
  500 B300197 L300206
  550 C300198 M300207
  630 D300199 N300208
  700 E300200 P300209
32 800 F300201 Q300210
  900 G300202 R300211
  1000 H300203 S300212
  1100   B301071
  1250   C301072
  1400   D301073
  1600   E301074
  1800   F301075
  500 W300238 K300228
  550 X300239 L300229
  630 Y300240 M300230
  700 Z300241 N300231
  800 A300242 P300232
  900 B300243 Q300233
33 1000 C300244 R300234
  1100 D300245 S300235
  1250 E300246 T300236
  1400 F300247 V300237
  1600 E302063 G301076
  1800   H301077
  2000   J301078
  2250   K301079
  2500   L301080

Size Amp Ref. Number
  63 W300652
  80 X300653
  100 Y300654
  125 Z300655
  160 A300656
70 200 B300657
  250 C300658
  280 Q300716
  315 D300659
  350 E300660
  160 E300752
  200 F300661
  250 G300662
  280 R300717
  315 H300663
71 350 J300664
  400 K300665
  450 L300666
  500 M300667
  550 N300668
  630 P300669
  280 Q300670
  315 R300671
  350 S300672
  400 T300673
  450 V300674
72 500 W300675
  550 X300676
  630 Y300677
  700 Z300678
  800 A300679
  315 B300680
  350 C300681
  400 D300682
  450 E300683
  500 F300684
  550 G300685
73 630 H300686
  700 J300687
  800 K300688
  900 L300689
  1000 M300690
  1100 N300691
Ferraz  Shawmut

American and European Square - body Fuses

IEC 660VAC / 700VAC

German standard PCS 900 to 1250VAC Blades

Size Amp Din 80 Din110
Ref. Number Ref. Number
30 50 F301926 G301191
63 E300180 Q300118
80 F300109 R300119
100 G300110 S300120
125 H300111 T300121
160 J300112 V300122
200 K300113 W300123
250 L300114 X300124
315 M300115 Y300125
350 N300116 Z300126
400 P300117 A300127
450 A300403 S300695
500 B300404 Y301091
550 C300405 Z301092
31 200 Y300010 H300019
250 Z300011 J300020
315 A300012 K300021
350 Q300049 P300048
400 B300013 L300022
450 C300014 M300023
500 D300015 N300024
550 E300016 P300025
630 F300017 Q300026
700 G300018 R300027
800 D300406 H300709
32 400 E300177 P300186
450 F300178 Q300187
500 G300179 R300188
550 H300180 S300189
630 J300181 T300190
700 K300182 V300191
800 L300183 W300192
900 M300184 X300193
1000 N300185 Y300194
1100 W302101
1250 G300409
33 500 G300248 S300258
550 H300249 T300259
630 J300250 V300260
700 K300251 W300261
800 L300252 X300262
900 M300253 Y300263
1000 N300254 Z300264
1100 P300255 A300265
1250 Q300256 B300266
1400 R300257 C300267
1600 X301803 Z301437

Size Amp Ref. Number
70 63 V300536
80 W300537
100 X300538
125 Y300539
160 Z300540
200 A300541
250 B300542
280 J300710
315 C300543
350 D300544
71 160 D300751
200 E300545
250 F300546
280 K300711
315 G300547
350 H300548
400 J300549
450 K300550
500 L300551
550 M300552
630 N300553
72 280 P300554
315 Q300555
350 R300556
400 S300557
450 T300558
500 V300559
550 W300560
630 X300561
700 Y300562
800 Z300563
73 315 A300564
350 B300565
400 C300566
450 D300567
500 E300568
550 F300569
630 G300570
700 H300571
800 J300572
900 K300573
1000 L300574
1100 M300575
Ferraz  Shawmut

American and European Square - body Fuses

IEC 660VAC / 700VAC

French standard PCS 900 to 1250VAC Blades
Size Amp Ref. Number
30 50 R300372
63 H300088
80 J300089
100 K300090
125 L300091
160 M300092
200 N300093
250 P300094
315 Q300095
350 R300096
400 S300097
31 200 C300037
250 D300038
315 E300039
350 N300047
400 F300040
450 G300041
500 H300042
550 J300043
630 K300044
700 L300045
32 400 V300168
450 W300169
500 X300170
550 Y300171
630 Z300172
700 A300173
800 B300174
900 C300175
1000 D300176
33 500 Z300218
550 A300219
630 B300220
700 C300221
800 D300222
900 E300223
1000 F300224
1100 G300225
1250 H300226
1400 J300227

Size Amp Ref. Number
70 63 P300600
80 Q300601
100 R300602
125 S300603
160 T300604
200 V300605
250 W300606
280 L300712
315 X300607
350 Y300608
71 160 C300750
200 Z300609
250 A300610
280 M300713
315 B300611
350 C300612
400 D300613
450 E300614
500 F300615
550 G300616
630 H300617
72 280 J300618
315 K300619
350 L300620
400 M300621
450 N300622
500 P300623
550 Q300624
630 R300625
700 S300626
800 T300627
73 315 V300628
350 W300629
400 X300630
450 Y300631
500 Z300632
550 A300633
630 B300634
700 C300635
800 D300636
900 E300637
1000 F300638
1100 G300639
Ferraz  Shawmut

American and European Square - body Fuses

IEC 660VAC / 700VAC

French standard PCS 600 to 1250VAC End contacts
Size Amp Ref. Number
30 50 S300373
63 M300000
80 S300051
100 T300052
125 V300053
160 W300054
200 X300055
250 Y300056
315 Z300057
350 A300058
400 B300059
450 V300398
500 W300399
550 X300400
31 200 N300001
250 P300002
315 Q300003
350 M300046
400 R300004
450 S300005
500 T300006
550 V300007
630 W300008
800 Y300401
32 400 H300065
450 J300066
500 K300067
550 L300068
630 M300069
700 N300070
800 P300071
900 Q300072
1000 S300074
1100 M300759
1250 P301060
1400 Q301061
1600 H300893
1800 R301062
33 500 V300076
550 W300077
630 X300078
700 Y300079
800 Z300080
900 A300081
1000 B300082
1100 C300083
1250 D300084
1400 E300085
1500 Y300585
1600 Z300586
1800 A300587
2000 B300588
2250 K300757
2500 L300758

Size Amp Ref. Number
70 63 M300483
80 N300484
100 P300485
125 Q300486
160 R300487
200 S300488
250 T300489
280 N300714
315 V300490
350 W300491
71 160 B300749
200 Z300517
250 A300518
280 P300715
315 B300519
350 C300520
400 D300521
450 E300522
500 F300523
550 G300524
630 H300525
72 280 Y300493
315 Z300494
350 A300495
400 B300496
450 C300497
500 D300498
550 E300499
630 F300500
700 G300501
800 H300502
73 315 J300503
350 K300504
400 L300505
450 M300506
500 N300507
550 P300508
630 Q300509
700 R300510
800 S300511
900 T300512
1000 V300513
1100 W300514
1250 T300696
1400 S300718
1600 B301301
1800 C301302
Fuji Fuse

Super  Rapid  Fuses

Type Amp Voltage
CS5F-40 40 500V
CS5F-75 75
CS5F-100 100
CS5F-150 150
CS5F-200 200
CS5F-250 250
CS5F-300 300
CS5F-350 350
CS5F-400 400
CS5F-450 450
CS5F-500 500
CS5F-600 600
CS5F-800 800
CS5F-1000 1000
CS5F-1200 1200
CS5F-1500 1500
CS8F-1000 1000 800V
CS8F-1200 1200
CS8F-1500 1500
CS10F-80 80 1000V
CS10F-100 100
CS10F-150 150
CS10F-200 200
CS10F-250 250
CS10F-300 300
CS10F-350 350
CS10F-400 400
CS10F-500 500
CS10F-630 630
CS10F-750 750
CS15F-450 450 1500V
CS15F-630 630

Medium Voltage Fuses

Ferraz  Shawmut

Semiconductor Fuses

DC  Fuses

Ferrule  Fuses 1000VDC /  1500VDC

Size Amp Ref. Number
  0.8 E075743
  1 E075744
  1.5 G075745
  2 B088367
  3.15 H075746
  4 J075747
  5 C088368
  0.8 J081842
  1 R079894
20X127 1.5 K081843
  2 Y099243
  3.15 L081844
  4 Z099244
  5 A099245
  6 E082804
  8 Z080867
  10 F081655
  12 B080593
  16 Q081457
  20 D082803
  25 A080431

Ferraz  Shawmut

Medium Voltage Fuse ; European Fuses

DIN fuse 7.2KV - 36KV

Complies with IEC 282-1

Rate Voltage Amp Ref. Number
Un (KV)
3 / 7.2 2 N1000098A
4 P1000099A
6.3 S209293A
10 T209294A
16 V209295A
20 W209296A
25 X209297A
31.5 Y209298A
40 Z209299A
50 A209300A
63 B209301A
80 C209302A
100 D209303A
125 Q1000100A
160 R1000101A
200 S1000102A
6 / 12 1 T1000103A
2 V1000104A
4 W1000105A
6.3 F209305A
10 G209306A
16 H209307A
20 J209308A
25 K209309A
31.5 L209310A
40 M209311A
50 N209312A
63 P209313A
80 Q209314A
100 R209315A
125 X1000106A
160 Y1000107A
200 Z1000108A
10 / 17.5 6.3 V1000564A
10 W1000565A
16 X1000566A
20 Y1000567A
25 Z1000568A
31.5 A1000569A
40 B100570A
50 C1000571A
63 D1000572A
80 E1000573A
100 F1000574A
10 / 24 1 A1000109A
2 B1000110A
4 C1000111A
6.3 S209339A
10 T209340A
16 V209341A
20 W209342A
25 X209343A
31.5 Y209344A
40 Z209345A
50 A209346A
63 B209347A
80 C209348A
100 D209349A
125 D1000112A
160 E1000113A
200 F1000114A
20 / 36 2 G1000115A
4 H1000116A
6.3 S209362A
10 T209363A
16 V209364A
20 W209365A
25 X209366A
31.5 Y209367A
40 Z209368A
50 J1000117A
  63 K1000118A

COPYRIGHT 2010 @ ALL RIGHT RESERVED BY T.S.K SUPPLY & SERVICE CO., LTD.
