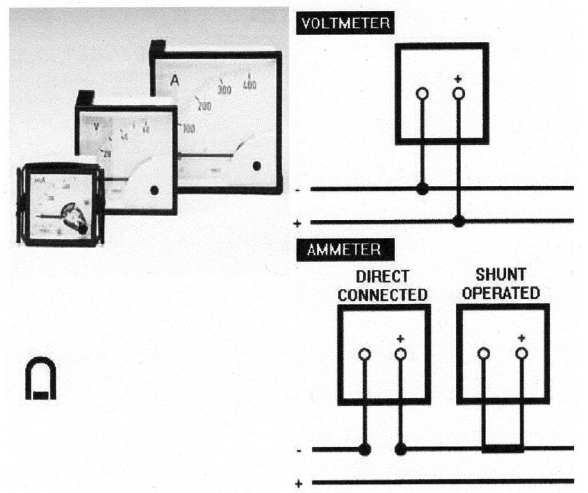

Panel Vollage, Amp Meter |
|
Types : |
D48MC, D72MC, D96MC |
|
Accuracy : |
Class1.5 |
|
DC Ratings : |
100mA
to 50A direct connected (DC48MC
- 40A max)
4-20mA, 1mA or 20mA transducer
operated.
50mV to 600V direct connected.
50mV to 300mV shunt operated. |
|
AC Ratings : |
Rectifier types available for
a.c. use (mean sensitivity). |
|
DC Burden : |
80mV to 150mV volt drop for
direct connect ammeters, 1 mA
(1000W/V)
for voltmeters and shunt
operated ammeters |
|
Non std : |
Suppressed zero voltmeters and
trim potentiometer types
available. |
|
Availaility : |

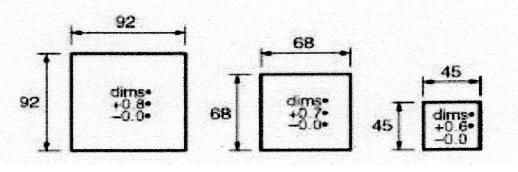

DIN 96, DIN72. DIN48. |
 |
|
Standards : |
IEC 51, BS89. |
|
Enclosure : |
DIN4370.
Flame Retardant
base material UL94V1,
case & terminal cover material
UL94V0.
Scale marking DIN 43802
Protection IP52: IP54 can be
supplied.
|
|
Overload : |
CURRENT
VOLTAGE
|
- 1.2 x rating for 2 hrs.
- 10 x rating for 5 secs.
- 1.2 x rating for 2 hrs.
- 2 x rating for 5 secs.
|
|
Insulation test : |
2kV 50Hz for 1min. |
|
Temperature : |
Calibrated at 23°C
Suitable for use at - 25°C
to +40°C
|
|
Available Extras : |
Adjustable red secondary
pointer.
Terminal cover.
Special scale.
Polycarbonate window.
6.4 mm "Faston" terminal tag
(voltmeters & ammeters to 5A). |
|
|
Pilot Lamp &
Electric Lamp |
|
|
|
 |
E-5
6 V , 12 V , 28 V
SIZE : 5 x 16 MM. SCREW |
|
|
 |
FB (Midget Flanged Base)
3 V , 4 V , 5 V , 6 V , 14
V , 18 V , 28 V , 60 V , 220
V
DIA. 3MM , 4MM , 5MM |
|
|
 |
GB (Midget Grooved Base)
6 V , 14 V , 18 V , 28 V ,
60 V , 220 V
SIZE : 5 x 15 MM. |
|
|
 |
BA7S
6 V , 12 V , 24 V , 48 V ,
60 V
SIZE : 7 x 20 MM. |
|
|
 |
BA9S (Tubular)
6.3 V , 12 V , 14 V , 24 V ,
30 V
SIZE : 9 x 23 MM. |
|
|
 |
BA9S (Global)
6.3 V , 12 V , 24 V , 30 V.
SIZE : 11 x 23 MM. |
|
|
 |
E10 (Global)
6 V, 12 V, 24 V.
SIZE : 11 x 23 MM. |
|
|
 |
E10 (Tubular)
6.3 V, 12 V, 18 V, 24 V, 28 V,
30 V, 48 V, 60 V, 130 V, 240 V.
SIZE : 10 x 28 MM. |
|
|
 |
E14
24 V, 30 V, 60 V, 130 V, 240 V.
SIZE : 16 x 45 MM. |
|
|
 |
E12
18 V, 24V, 30 V, 60 V, 130 V,
140 V.
SIZE : 13 x 33 MM. |
|
|
 |
Neon Glow Lamp
110 V , 220 V
DIA. 4 , 5 , 6 |
|
|
 |
Silde Base (Telephone Lamp)
6 V , 12 V , 24 V , 28 V ,
30 V , 48 V , 60 V |
|
|
|
|
Fan Cooling |
|
|
|
 |
100 / 115 VAC , 200 / 230 VAC
|
SIZE : |
140 X 14 MM.
160 X 16 MM.
180 X 18 MM.
200 X 20 MM.
250 X 25 MM. |
|
|
|
 |
100 / 110 / 115 VAC , 200 / 220
/ 230 VAC
|
|
|
 |
115 VAC , 220 / 230 VAC
|
SIZE : |
25 X 25 MM.
28 X 28 MM.
38 X 38 MM.
80 X 8 MM.
92 X 9 MM.
104 X 10 MM.
119 X 12 MM.
140 X 14 MM. |
|
|
|
 |
12
VDC , 24 VDC
|
SIZE : |
10 X 10 MM.
25 X 25 MM.
51 X 51 MM.
42 X 4 MM.
52 X 5 MM.
62 X 6 MM.
80 X 8 MM.
92 X 9 MM.
119 X 12 MM.
172 X 17 MM. |
|
|
|
 |
12VDC , 24 VDC.
115 VAC , 230 VAC , 220 / 240
VAC.
|
SIZE : |
3" , 3 1/2" , 4 1/2" ,
7X8" |
|
|
|
|
|
Axial Mounting Lithium Thionyl Chloride
Cells |
|
ð
Axial package |
 |
|
Comparison table |
Battery
Cell
Size |
Capacity
(Ah) |
Maximum
Continuous Current
(mA) |
Dia.
(mm) |
Height
(mm) |
|
1/2AA |
0.95 |
40 |
14.5 |
25.4 |
|
2/3A |
1.7 |
45 |
17.1 |
33.7 |
|
AA |
2.2 |
100 |
14.5 |
50.5 |
| |
|
PCB Mounting Lithium Thionyl Chloride Cells |
|
|
|
Comparison table |
|
Battery
Cell |
Capacity |
Maximum
Continuous Current |
Dia. |
Height |
|
Size |
(Ah) |
(mA) |
(mm) |
(mm) |
|
1/2AA |
0.95 |
40 |
14.5 |
25.4 |
|
2/3A |
1.7 |
45 |
17.1 |
33.7 |
|
AA |
2.1 |
100 |
14.5 |
50.5 |
|
A |
3.3 |
130 |
17.0 |
50.5 |
| |
|
Standaed Pipped Lithium Thionyl Chloride
Cells |
| |
|
Comparison table |
 |
Battery
Cell
Size |
Capacity
(Ah) |
Dia.
(mm) |
Height
(mm) |
|
1/2AA |
1 |
14.5 |
25.4 |
|
1/2AA |
1.2 |
14.5 |
25.4 |
|
2/3A |
1.7 |
17.7 |
33.7 |
|
AA |
2.25 |
14.5 |
50.5 |
|
A |
2.75 |
14.5 |
50.5 |
|
C |
3.3 |
17.0 |
50.5 |
|
D |
7.2 |
26.2 |
50.5 |
|
|
16.5 |
34.2 |
61.5 |
| |
|
Standard Pip Lithium Thionyl Chloride Cells |
ð
For standard and standby use
ð
14.5mm Diameter |
 |
|
Comparison table |
Battery
Cell
Size |
Capacity
(Ah) |
Maximum
Continuous Current
(mA) |
Height
(mm) |
|
1/2AA |
1.2 |
6 |
25.4 |
|
AA |
2.4 |
20 |
50.5 |
| |
|
Polarised PCB Mount Lithium Thionyl Chloride
Cells |
ð
For standard and standby use
ð
Polarised PCB Pins, 1-Positive, 2-negative
ð
PCB mounting
ð
14.5mm Diameter |
 |
|
Comparison table |
Battery
Cell
Size |
Capacity
(Ah) |
Maximum
Continuous Current
(mA) |
Height
(mm) |
|
1/2AA |
0.95 |
40 |
25.4 |
|
2/3A |
1.7 |
45 |
33.7 |
|
AA |
2.1 |
100 |
50.5 |
|
A |
3.3 |
130 |
50.5 |
| |
|
Very High Temperature Lithium Thiony
Chloride Cells |
ð
Extended temperature range -55c to + 130C
ð
PCB Pinned Cells suitable for data logging,
process
control,
temperature monitoring devices etc. |
 |
|
Comparison table |
Battery Cell
Size |
Capacity
(Ah) |
Maximum Continuous
Current |
Height
(mm) |
|
1/2AA |
0.8 |
6 |
25.4 |
|
2/3AA |
1 |
10 |
33.5 |
|
AA |
1.7 |
20 |
50.5 |
|
